Physiological data acquisition & analysis

IOX2 software

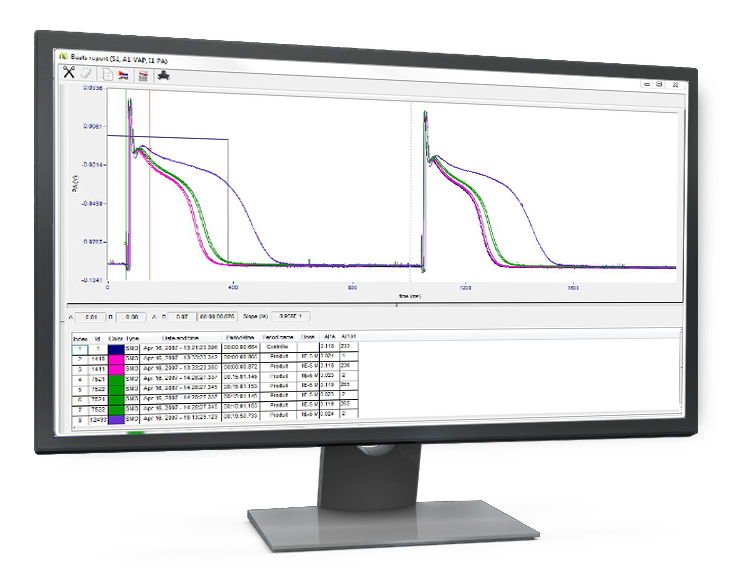

IOX2 Software is a GLP-compliant solution designed for researchers to efficiently acquire, analyze, view, and store physiological data generated during preclinical experiments.

With a powerful suite of analysis tools, IOX2 provides comprehensive real-time signal processing to ensure precise and reliable results.

iox software
How does it work?

The software supports real-time analysis of up to 200 independent physiological signals simultaneously from:

  • emka TECHNOLOGIES’ systems
  • Your existing hardware (Transonic flowmeters, DSI™ implants etc.)

For each signal, an analyzer processes your data at rates ranging from 10 to 50,000 samples per second, enabling you to derive predefined parameters from physiological signals with precision.

Versatile real-time analysis

At the core of IOX2 Software is a library of application-specific analysis modules. These modules (also called analyzers) are built using algorithms that are widely accepted and validated by the life sciences research community, ensuring robust and accurate data processing for a variety of physiological signals:

  • Cardiovascular
  • Respiratory
  • Neurological
  • Electrophysiology
  • In-vitro Data

IOX2 software includes a wide range of analyzers for comprehensive signal analysis:

  • Blood pressure & flow, pulse pressure, left ventricular pressure
  • ECG, EEG, EMG
  • Pressure-volume loops, pressure/distance
  • Ventricular wall thickness or segment length
  • Respiratory flow, penH, cough and apnea detection
  • Lung resistance/compliance
  • Slow & rhythmic contractile tissue
  • Action potentials
  • Cystometry
  • Power spectrum analysis, nerve
  • Temperature, onset of fever, acceleration, etc.

Customizable

IOX2 Software offers a range of customizable features to suit your specific research needs:

  • Flexible Display options: View physiological signals, trends, loops, and data tables in real-time.
  • Automated Alarms & Notifications: Set automated alarms and receive email notifications when physiological triggers are reached.
  • Experiment Protocols: Automate tasks and external device operations with customizable protocols.
  • Real-Time Review: Instantly review signal data with calculated markers and derived parameters.
  • Synchronized Video Recording: Optional video recordings can be synchronized with biological signals for enhanced analysis.
Video Recording key features
  • Real-Time Video Access: Video streams can be accessed in real-time through IOX software or Surveillance Station. You can also review recorded footage offline using ecgAUTO software.
  • Synchronized Data Streams: Video streams are dynamically linked and synchronized to IOX raw data files, providing a complete view of the data.
  • Multi-Site Integration: Several subjects can be linked to each camera for multi-site studies, ensuring full coverage of your research.
  • Scalable Management: One IOX software license can manage up to 16 cameras or video streams, offering flexibility for large-scale monitoring projects.
  • Easy Acquisition Control: Start and stop video stream acquisition directly from the IOX software interface.

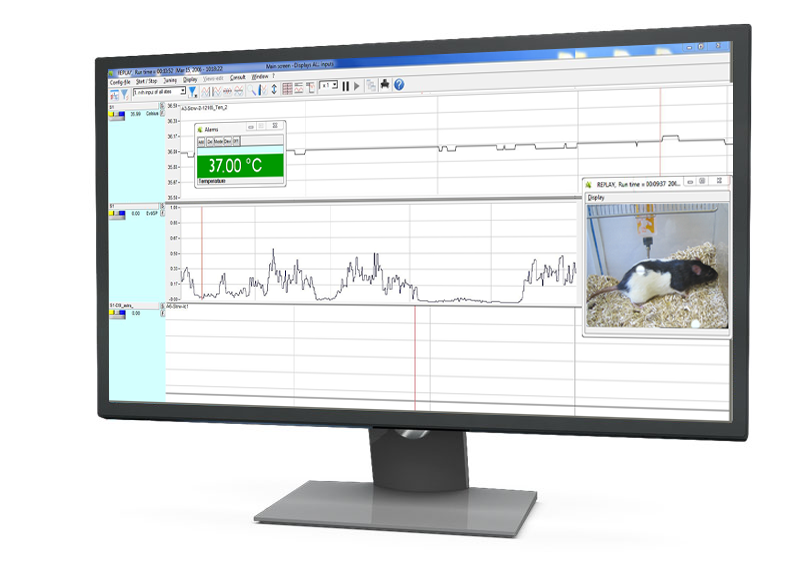

iox software-temperature-video

GLP & SEND Compliant

IOX2 software is designed to help you meet Good Laboratory Practice (GLP) standards, ensuring data integrity, reliability, and consistency for regulatory compliance. Optional GLP modules can be activated to strengthen your study management and data handling processes.

These modules provide robust tools for secure user access, audit trails and electronic signatures, offering peace of mind and confidence in your data’s integrity.

User management: This module controls access to the software, ensuring that only authorized individuals can view or modify data. Users are granted specific access rights based on their role (e.g., administrator, standard user) with:

  • Login credentials (username and password)
  • Optional expiry dates for user access
  • Customizable logout periods to ensure secure sessions

Audit trail: This module automatically logs all actions that may affect raw or processed data. It collects these audit lines and stores them in a secure database for future reference.

Each entry includes a list of  actions done on emka TECHNOLOGIES programs, such as the date and time of the action, the user who performed the action or the computer where he action was executed.

These audit records are invaluable for tracking changes and ensuring data integrity during your research.

Electronic signature: The eSIGN module provides secure, encrypted electronic signatures, ensuring compliance with industry regulations and safeguarding the authenticity of your data.

Study management: This module allows you to efficiently associate data files with specific studies, helping you stay organized and ensuring proper documentation of all experimental data.

To comply with SEND requirements, IOX generates SEND 3.1 compatible files that can easily be exported to .xls, .csv and integrated into third-party solutions by Instem and Xybion to increase productivity in preclinical studies.

An input is an electrical signal usually generated by a transducer or electrode and amplified through a specific amplifier.

In addition to inputs (which correspond to measured signals), IOX can create calculated inputs. A calculated input is defined by its calculation formula combining one or more physical inputs, numbers, operators, mathematical functions. After the calculation, the calculated input is handled in the same way as the physical input.
It can be visualized, analyzed, recorded, just as if it came from a transducer.

An analyzer is a software module that derives computed parameters from one or several inputs. Parameters are specific to the type of analyzer. The choice of the analyzer depends on the measured variable, such as left ventricular pressure, blood flow, action potential…

For example:

  • The Blood Pressure analyzer computes the diastolic pressure, systolic pressure, …
  • The Rhythmic analyzer, linked to a papillary muscle input, for example, will derive for each beat per min value, max value, beating frequency, and more…

Some analyzers may require several inputs in order to generate all the relevant parameters (e.g. for the Blood Flow analyzer, a pressure input is required along with a flow input to compute resistance).

A site is a group of inputs related to a single animal or an isolated tissue. A site can be:

  • a dog in a telemetry experiment from which ECG, temperature, and activity are measured.
  • an isolated perfused heart with inputs such as : perfusion pressure, perfusion flow, left ventricular pressure, ECG…
  • tissue bath setup with a single input from a force transducer measuring organ tension

The associations formed by inputs and analyzers are grouped into sites, and users will define as many sites as subjects. At the beginning of an experiment, IOX will ask for a subject name for each site. In the end, a primary file will be created for each site/subject.

iox2 is designed to work with all emka TECHNOLOGIES hardware and selected third-party devices, regardless of the data transmission technology used. To ensure seamless integration, iox2 offers multiple acquisition modes tailored to different hardware platforms:

  • Wired Systems: three dedicated modes, including Emka USB-based acquisition systems, Emka tissue bath & myograph applications, and National Instruments acquisition cards or the datalink_usb interface.
  • Wireless Telemetry Systems: three modes, including Emka Digital implantable telemetry, Emka Non-invasive telemetry and legacy analog telemetry implants.

Yes, IOX software offers the ability to replay exiting raw data files.

During this replay, a new analysis will be performed, and new text files, including derived parameters from raw data files, will be produced (note, that raw data files are never modified).

If a replay is performed without any modifications in the original configuration, new text files will include similar values to the original files. However, it is sometimes useful to change parameter settings to improve analysis. For instance, it is possible to:

  • Change analyzer or storage tunings
  • Produce data at a different rate.
  • Disable/enable categories or events
  • Change the zone to be replayed

Not necessarily. We can decide to affect two cameras to the same animal (i.e in large pens with indoor and outdoor parts requiring two cameras), or one camera for several animals (example of group housing in the same cage).

When animals are group-housed, a visual tag on each animal is necessary, in order to identify them. Furthermore, it should be taken into account that video recording can be black and white during night recording, with infrared illumination.

Raw data files with physiological signals and video data files are saved separately.

Video data files can be read with most movie players.

When reviewing records in IOX2 or ecgAUTO software, raw data files and video files are automatically synchronized. If the video signal cannot be located, raw data files are simply replayed without video.



Note: For instance, it is possible to keep Video files only for quality control just after recording and delete them later because archiving is not necessary. Deleting video files doesn’t impact physiological data files.

A license is a combination of software and its license file. Software rights (such as authorized analyzers, number of inputs, etc.) are saved in the license file.

License files are represented by an xmli file, stored on a license key, directly on the computer hard disk, or on the network. These files are created by emka TECHNOLOGIES, for any emka software version installed on a computer.

The computer used to install the emka TECHNOLOGIES software must satisfy the following minimum requirements:

  • OS: Windows 11 Pro
  • Processor: Intel® Core 7
  • Storage: 1TB SSD (standard) or 2TB SSD (acquisition with video)
  • RAM: 32 GB
  • 1 dedicated Ethernet port

We recommend the Desktop Dell Optiplex Small Form Factor model, along with an UPS (Uninterruptable Power Supply).

Before any installation, you must ensure with your IT department authority that the computer you intend to use for the emka TECHNOLOGIES software installation, and operation is correctly configured (read and write access on specific folders, Windows settings etc).
