for rodents

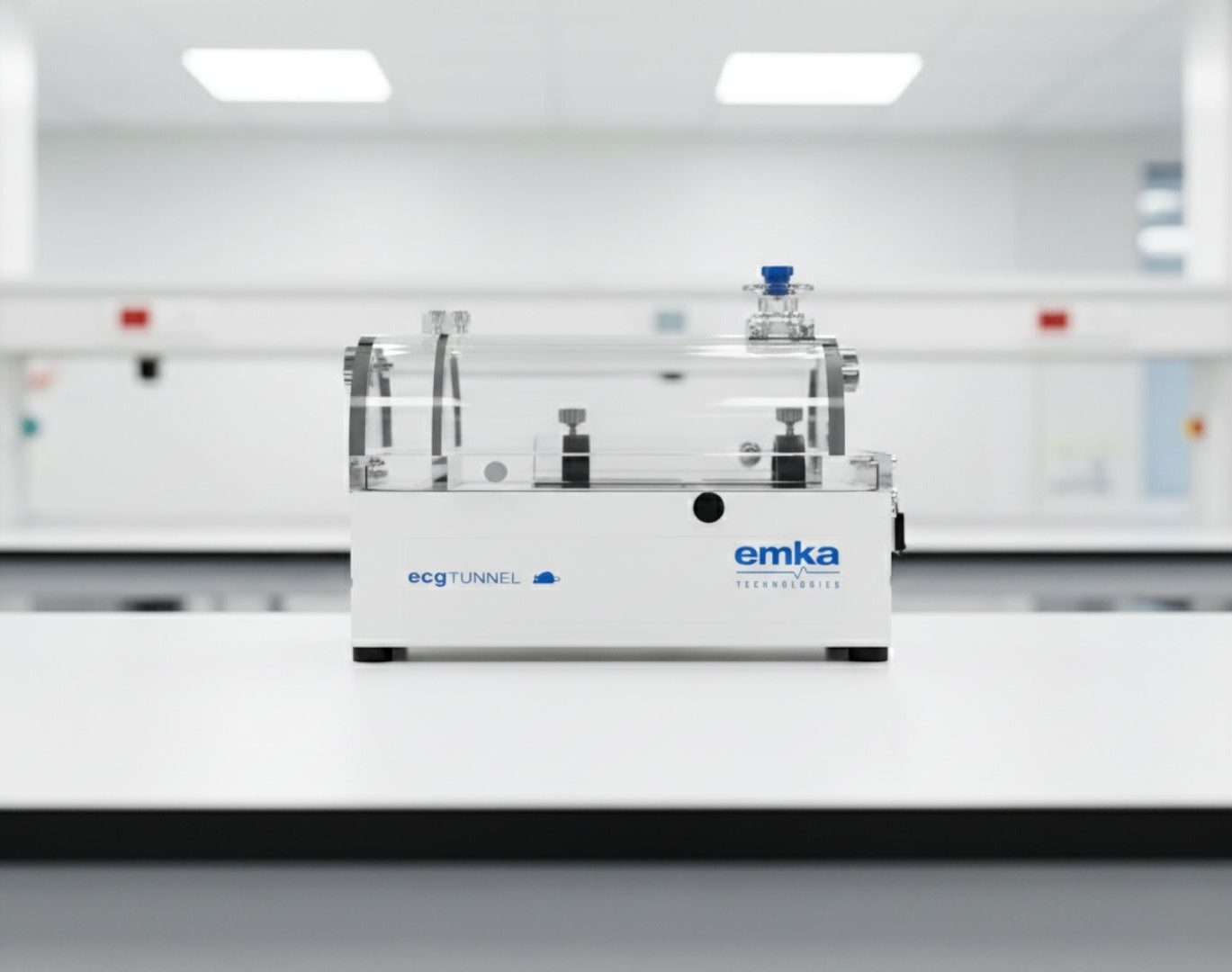

ecgTUNNEL is a plug-and-play system for snapshot ECG* recordings and respiration data in rodents that eliminates the need for surgery and anesthesia.

It combines up to 6-lead ECG with an optional plethysmograph dome for respiratory endpoints with optional exposure and infusion options.

This set up is particularly useful for snapshot recordings during sessions lasting a few minutes. It is often used for longitudinal studies where the subjects are studied on successive experiment days, or when subjects are particularly fragile and cannot tolerate surgery or anesthesia.

In an interview, Kimberly Londer BS, from the University of Maryland, said, “there are few systems, publications, or data that exists on small animal ECG without the use of anesthesia or telemetry.” Using ecgAUTO, she “scan[s] an entire recording for AF, ventricular disorders and other arrhythmias of interest within seconds.

*Electrocardiogram

Basic system

The basic system consists of:

  • A base with 4 electrode pads, housing the electronic.
  • restraining tunnel.
  • An optional faraday cage, to isolate ecgTUNNEL from electromagnetic Interferences



Whole body plethysmograph

To perform respiration measurement by plethysmography, the following hardware is added to the basic system:

  • Respiratory dome, with a pneumotachograph and a pressure port
  • Bias flow for air renewal
  • Differential air pressure transducer
  • Aerosol delivery
  • Implants

Tunnels specifications

Plethysmograph specifications

Request a Free Custom Literature Search

Save time evaluating emka TECHNOLOGIES equipment by having an Application Specialist conduct a custom literature research. Researchers will receive an email report showing emka TECHNOLOGIES publications relevant to their specific application research area, along with custom equipment recommendations and commentary.
